SPECIFICATIONS

Brand Name: NONE
Certification: CE
High-concerned chemical: None
Installation Method: Assembly
Model Number: WIND-POWERED GENERATING SETS
Mounting Base: Without Mounting Base
Origin: Mainland China
Shaft Material: iron
Type: Wind Power Generator


Specification
Condition: New
Controller System: Electromagnetism
Starting Wind Speed: 1.3m(12inch)/s
Cut-in Wind Speed: 2.5m(98inch)/s
Rated Wind Speed: 11m(433inch)/s
Max Instantaneous Wind Speed: ≤40m(1575inch)/s
The Instantaneous Maximum Wind Speed: ≤45m(1772inch)/s
Blades Quantity: 3 (with Different Colors)

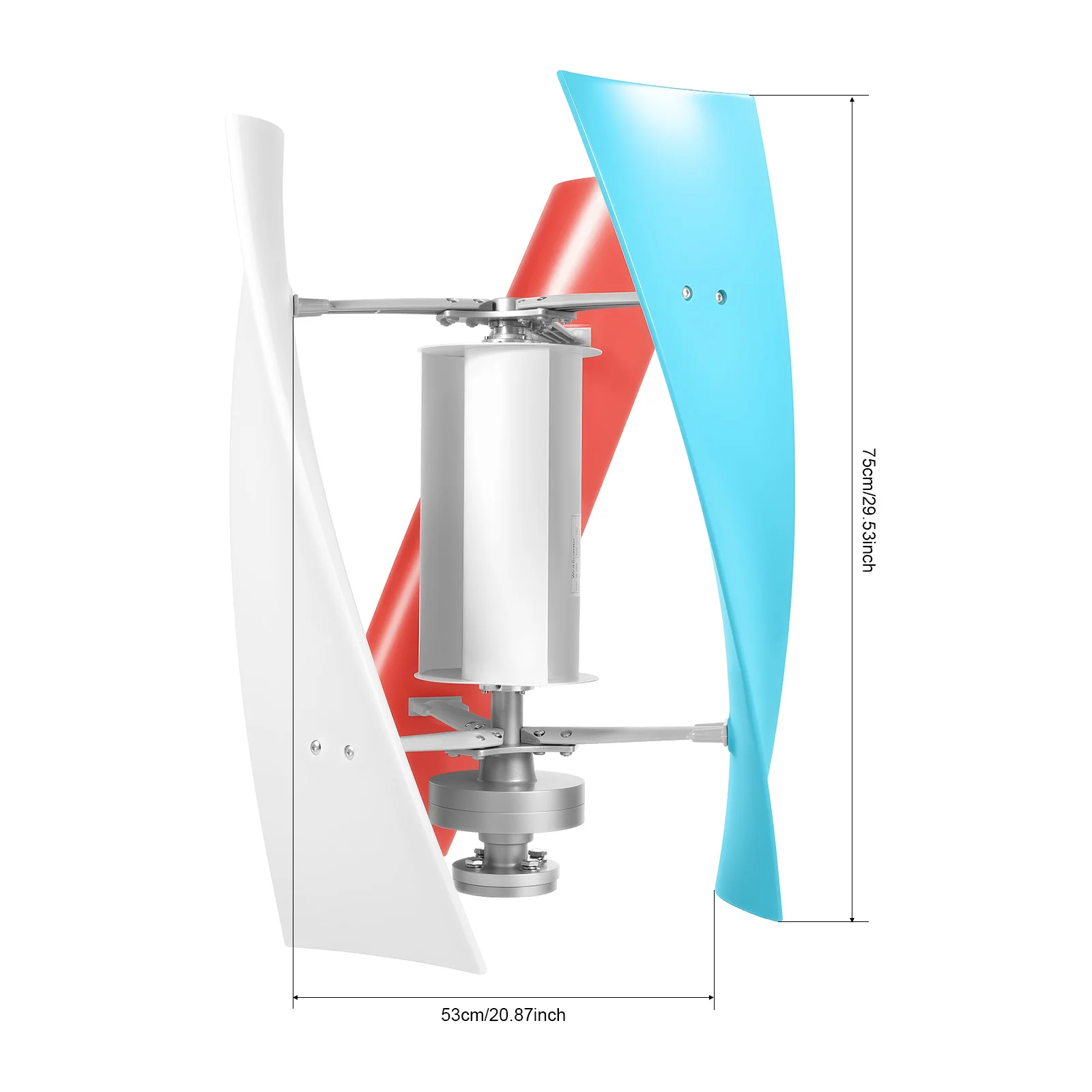

Diameter of Blades: 0.6m/24inch
Blades Height: 0.8m/31inch
Speed Regulation: Automatic
Rated Voltage: 12V
Rated Power: 400W
Max Power: 450W
Generator Protection Grade: IP67
Work Environment Temperature: 25 to 45℃+
Product Assembly Weight: <10kg/22lbs
Over-speed Protection: Electromagnetic Brake
Blade Material: Glass Fiber
Generator: Maglev Generator
Service Life: 10-15 Years
Installation Instructions: Not Included

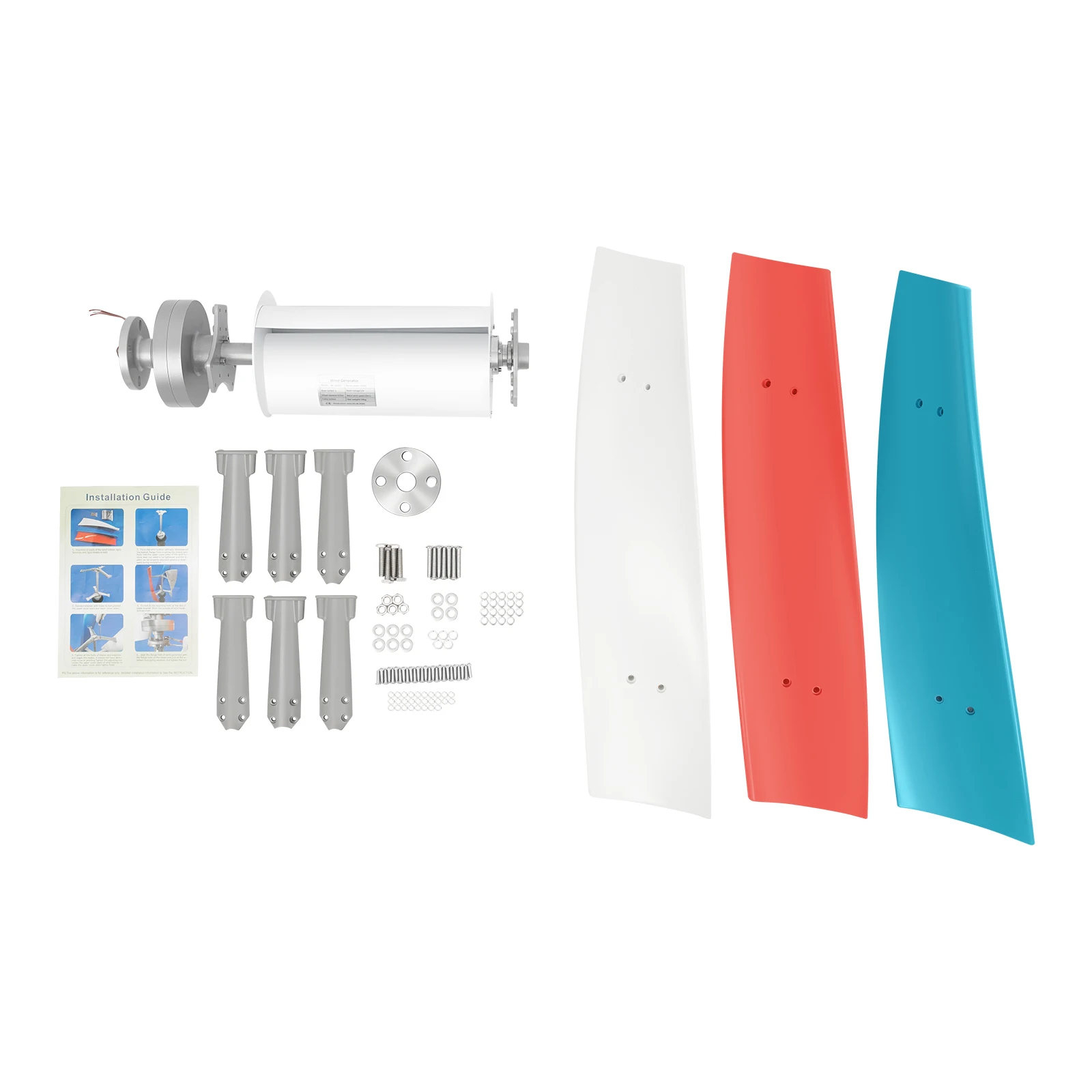

Package Included
1 x Wind Turbine
1 x Controller
3 x Blades (White, Red, Blue)
1 x Bag of Screws to Connect the Main Body
1 x Bag of Screws for Connecting the Bracket Blades
Other Accessory for Assembly
Application
It is well suited for boats, gazebos, cabins or mobile houses, and other energy supplies for homes, businesses and industry.
Description
The wind turbine, featuring a coreless permanent magnet generator and three high-strength fiberglass blades, is highly durable with an extended service life. Its spiral blades adopt an aerodynamic design, ensuring the rotor runs smoothly and reliably to deliver stable power generation. Additionally, it incorporates maximum speed protection for safety. This turbine is ideally suited for powering boats, gazebos, cabins, and mobile homes, as well as meeting energy needs for residential, commercial, and industrial applications.
Key Features
Built to Last: Featuring a coreless permanent magnet generator and three high-strength fiberglass blades, it boasts superior durability and an extended service life.

Stable Operation: With aerodynamically engineered spiral blades for smooth and reliable rotor operation, it can deliver stable power generation. Its dual-bearing structure and minimal vibration further ensure consistently smooth operation.

Ultra-Quiet Design: With the design principle of aircraft wings and the horizontal plane rotation, this wind turbine operates as quietly as a whisper (30dB), ensuring a peaceful and comfortable environment. It delivers clean, renewable energy without disturbing your daily life.
